MC087D 99

Features

12V DC input, 0-10V dimming signal or PWM dimming signal output, suitable for DC systems or LED driver with 12V DC auxiliary power output.
Three-step and two-step dimming is optional, detection area is adjustable.
Patented antithetical dipoles antenna design and Adaptive Algorithm, which effectively solves the problem of low installation height of columnar antenna sensors and false triggering caused by side-lobe radiation of the antenna when installed in a metal room.
Widely used in parking lots and other places, it solves the problem that traditional sensor cannot detect vehicles or the vehicle cannot be detected until it passes directly under the sensor.

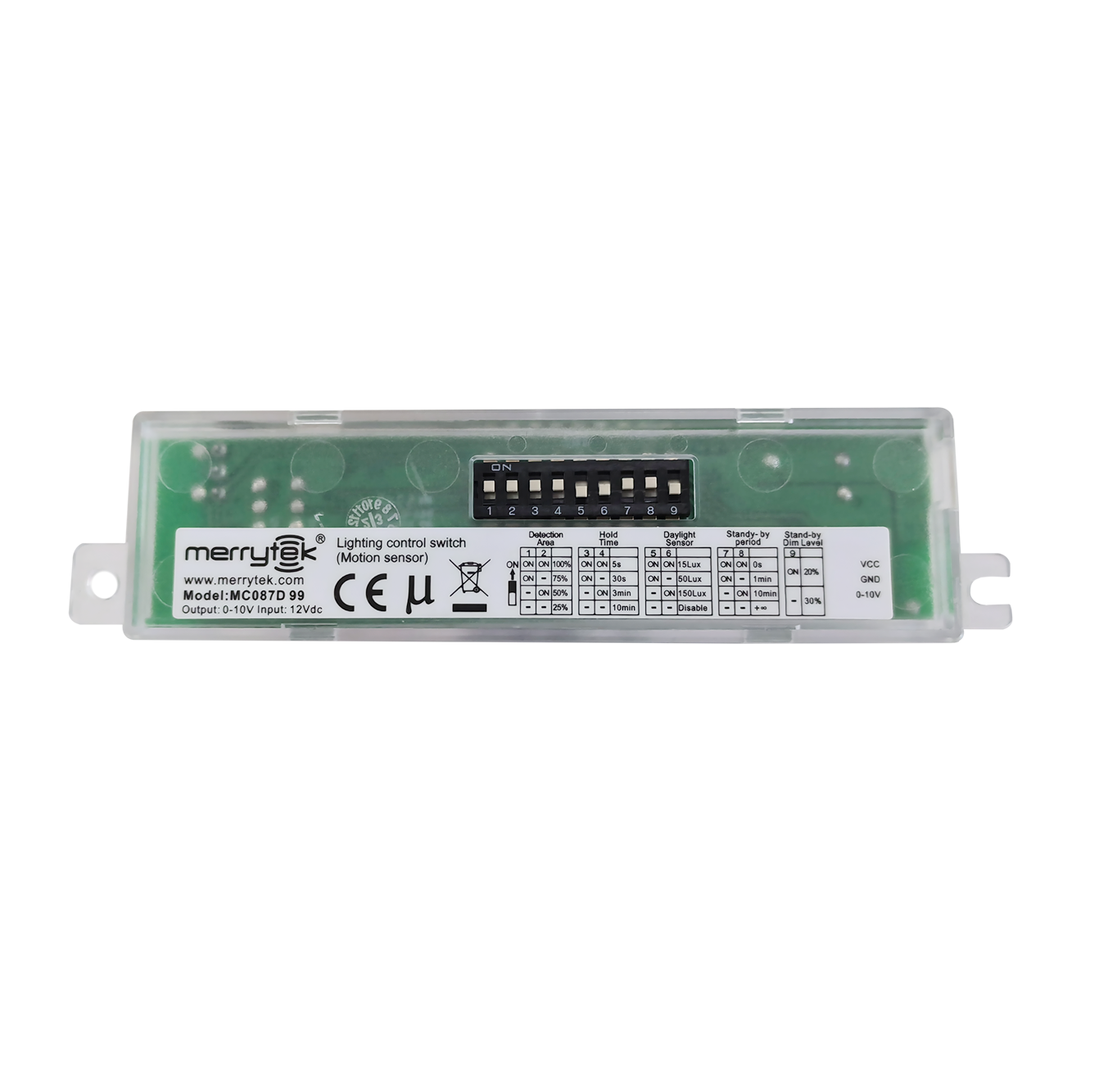

Sensor parameters can be set by remote control and DIP switches, easy to configured.

Size and Function Diagram

Parameter characteristics

Input	Rated Voltage	12±1Vdc
	Working Current	20±3mA
	Ripple Voltage	<100mVp-p
Output	Output Signal	PWM dimming signal		0-10VDC dimming signal
Daylight Sensor	Daylight Priority	ON	5Lux/15Lux/30Lux/50Lux	100Lux	150Lux
		OFF	150Lux	200Lux	300Lux
		The daylight priority mode can be entered in the remote control/dial code state. Dial state: Stand-by period time+∞ and can enter the light control priority mode with any light control gear(Except Disable) Remote control state: DH Mode/stand-by period mode+∞ group and any light control gear can enter the light control priority mode.
Sensor Parameters	Working Frequency
	Transmitting Power	1mW Max.
	Detection Area(Radius)	Ceiling mounting 3m: r≥4m@0.3m/s, r≥2.5m@1m/s; Wall mounting: r≥5m@0.3m/s, r≥3m@1m/s Test condition: Set 100% sensitivity, open 60 ㎡ indoor area.
	Mounting Height	3m (6m Max )
Environment	Working Environment Temperature	’-25~60℃
	Storage Temperature	‘-40~80℃ Humidity: ≤85% non-condensing
Certificate Standards	Certified	CE
	Environmental Requirements	RoHS 2.0, Reach
	IP Rating	IP20
Other	Wiring	3pin 2.0mm terminal
	Installation	Built-in
	Package	Clapboard + Carton(K=A)
	Net Weight	Pending
	Lifetime	5 years warranty@Ta

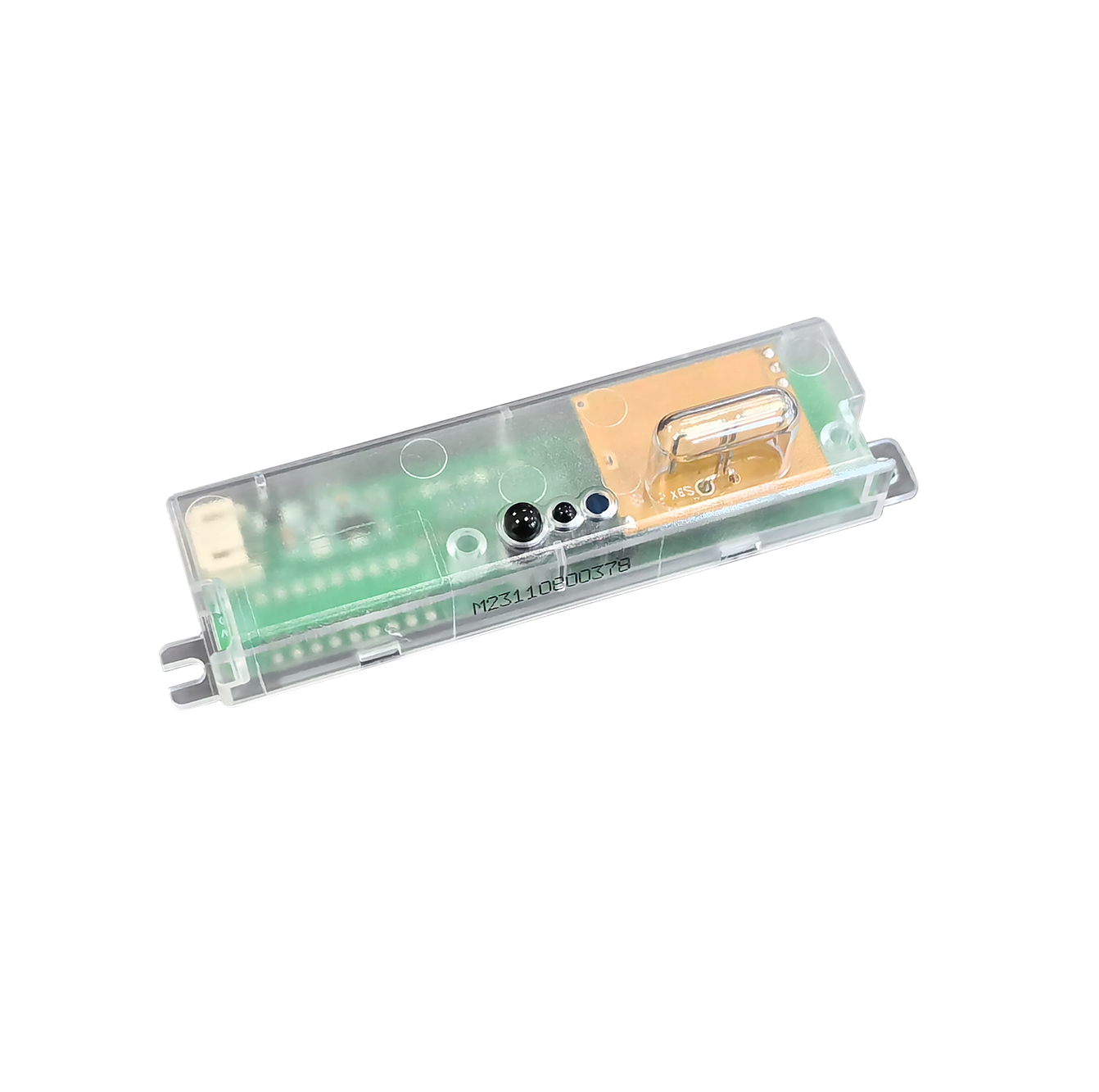

Product details

Application Notice

The sensor should be installed by a professional electrician. Please turn off the power before installing, wiring, changing the setting of the DIP switch.
Sensitivity area is related to moving speed of objects, size of moving objects, mounting height, mounting angle, working environment, reflecting materials and etc.. Given detecting area is typical value that was measured by 165cm/65kg testers in an indoor open environment.
The detection area of the microwave sensor when installed on the wall will be greatly increased compared to when installed on the ceiling. If adopts wall ceiling, please reduce the sensitivity or contact our company to confirm the usage settings. The daylight thresholds are measured on a sunny day without shadow and in an ambient light diffuse reflection status. Different environment and climate cause different brightness values that daylight sensor measures.
Sensor parameters may need to be reconfigured in different installation environments, please refer to the following instructions or contact the manufacturer.
Sensor is for indoor use only. The waterproof effect for outdoor or half-outdoor use will be affected. Wind, rain, and moving objects may cause false triggering.
The installation height of the sensor product cannot exceed 6 meters, and the optimal height is 3 meters. The distance between the two sensors should be greater than 3m.
When the sensor is installed in a metal lamp, on a metal reflective surface, or in a small closed environment, the microwave will be reflected multiple times and cause false triggering. Please reduce the sensitivity of the sensor or contact the manufacturer for technical support.
Please make sure that there are no moving signals such as fans, DC motors, sewer pipes, air outlets, etc. around the sensor, otherwise the sensor may cause false triggering.
Microwaves cannot penetrate metal. Do not place product in a closed or a half-closed metal lamp. Neither metal nor glass is not allowed to cover above the product.
Sensor are equipped with different PWM drivers, and the low-brightness effect may be different.
DC regulated power supply with stable output voltage and low ripple coefficient must be used. The ripple of the power supply should be less than 100mV ; the load current should be greater than 25mA

Wiring suggestions

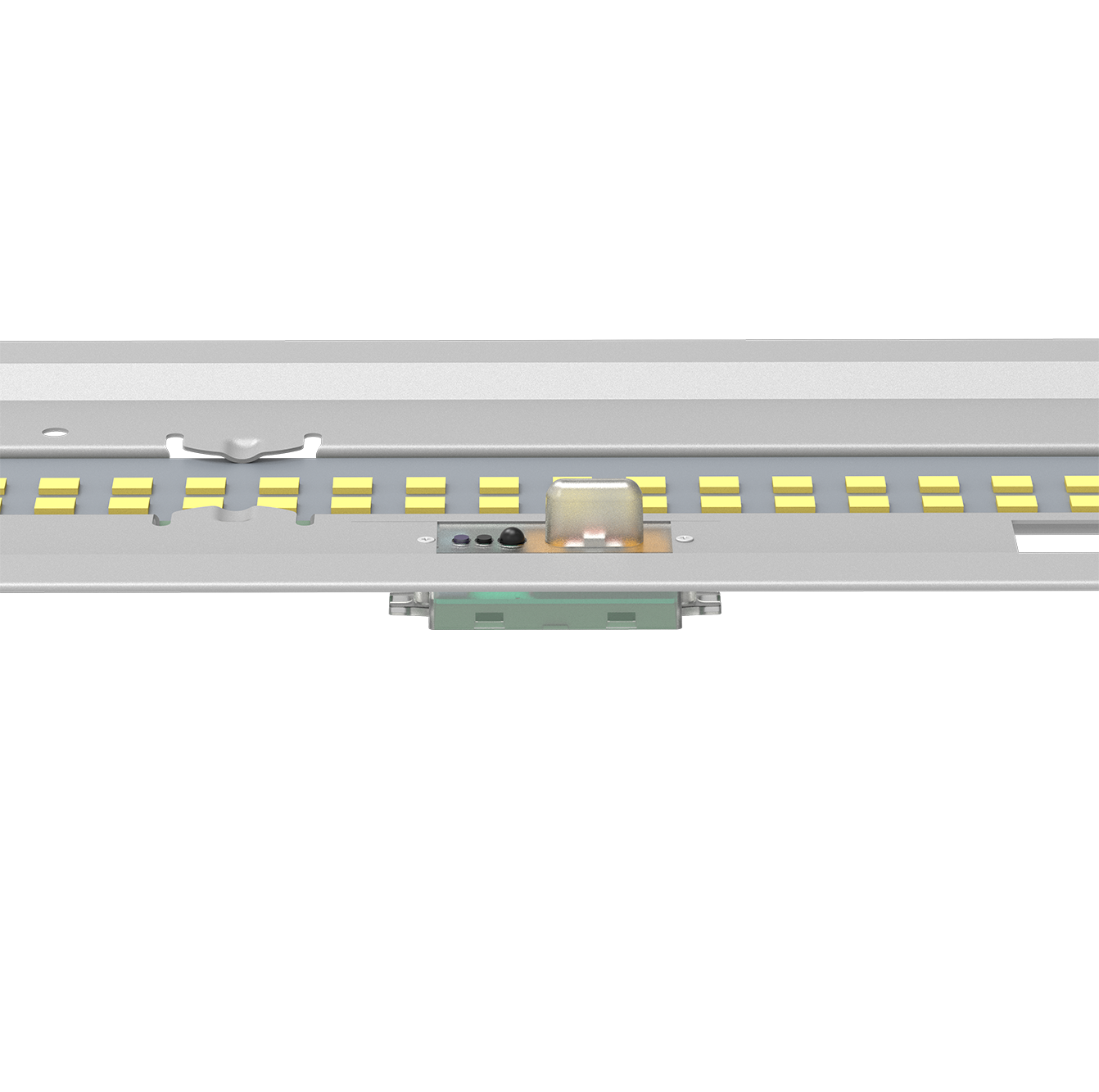

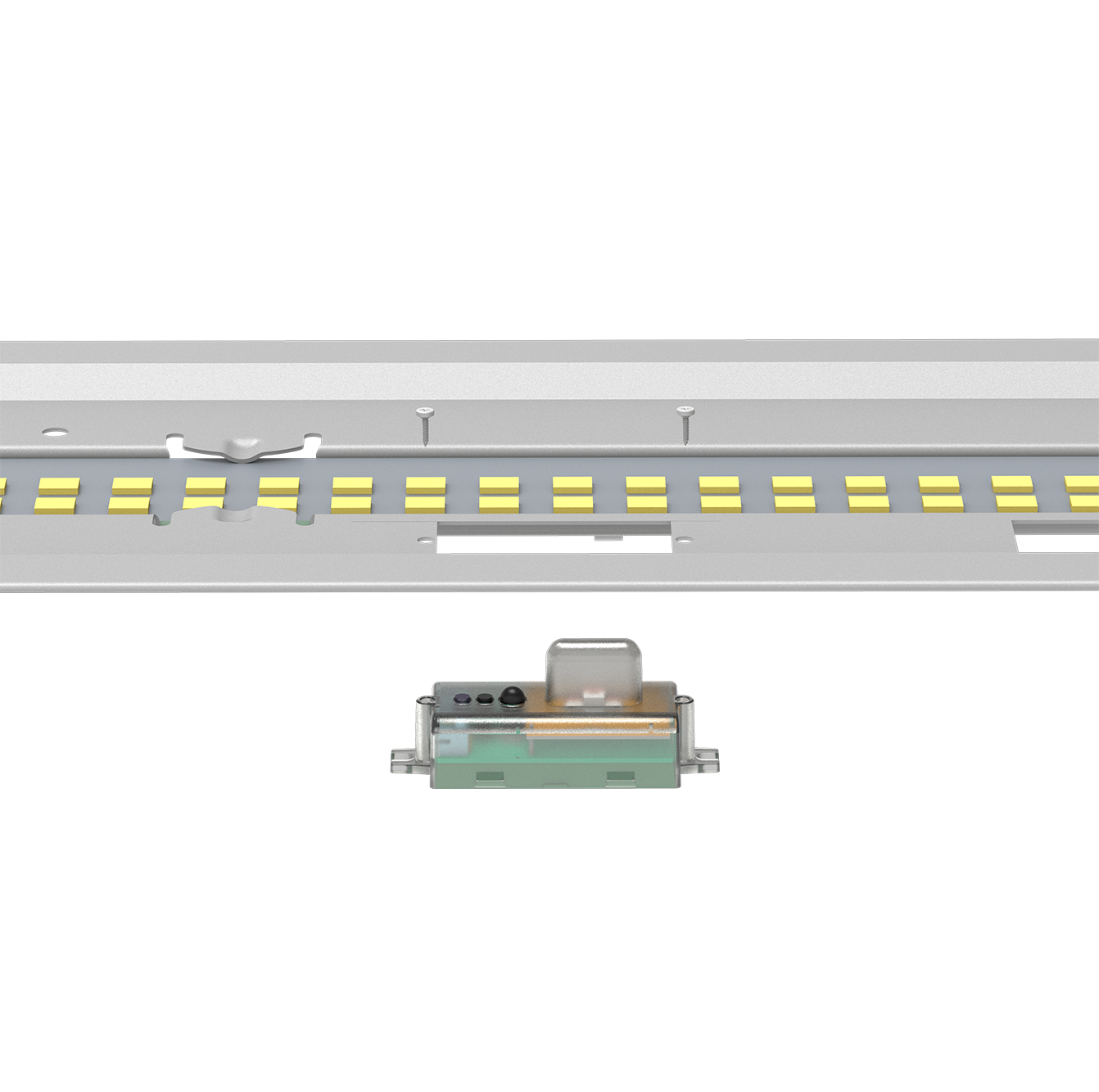

Installation suggestion

Note: The distance between microwave antenna and the metal plate and lamp housing must be greater than 3.2mm, and the metal plate step should not be higher than 2mm, otherwise it will affect the operation of the microwave antenna.
